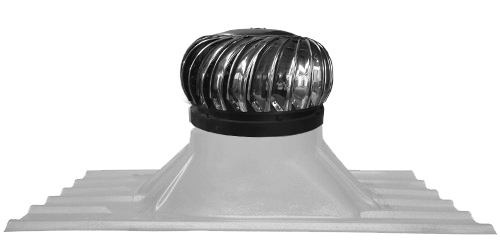

BMPL is authorized distributor of SKYLITE turbo ventilators, which is a natural ventilation system which has self driven turbines. Wind pressure continuously rotates the turbine without any requirement of Electricity. It is economical and most effective ventilation system for industrial Sheds. It is made from high strength aluminum or SS sheets, ensuring long life. Similarly louvres also serve as natural ventilation system which are installed In Claddings.
| PP/SS | |
|---|---|
| Neck/Throat(ID) | 24 Inch (610mm) 5mm |
| Turbine Dia(OD) | 26 Inch (660mm) |
| Height | 16 Inch (410mm) |
| Vanes(Blades) | 38vanes, Stainless Steel 0.3mm |
| Weight | 5.7kg approx |
| Base Ring | PPCP |
| Top Plate | Stainless Steel 0.5mm thickness |
| Centre Shaft | 15mm |
| Nos of Bearing | 02Nos |
| Bearing Type | 6001ZZ/6202ZZ |
| Rivets | Stainless Steel |
