BM PURLINS

MODERN STEEL BUILDING
STRUCTURAL MEMBERS

MANUFACTURED AS PER IS :
811 DESIGN & LOAD STANDARDS

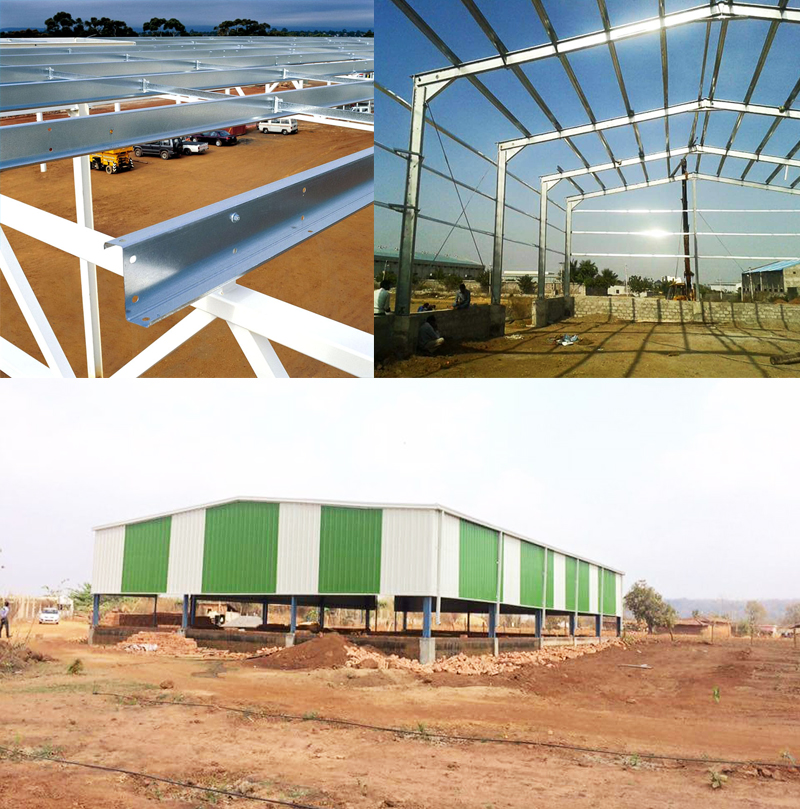

WIDE APPLICATIONS FOR
STEEL ROOFS AND WALL
SUPPORT FRAMING MAINLY IN PRE ENGINEERED BUILDINGS (PEB)

THICKNESS RANGE
1.5 MM - 3.0 MM

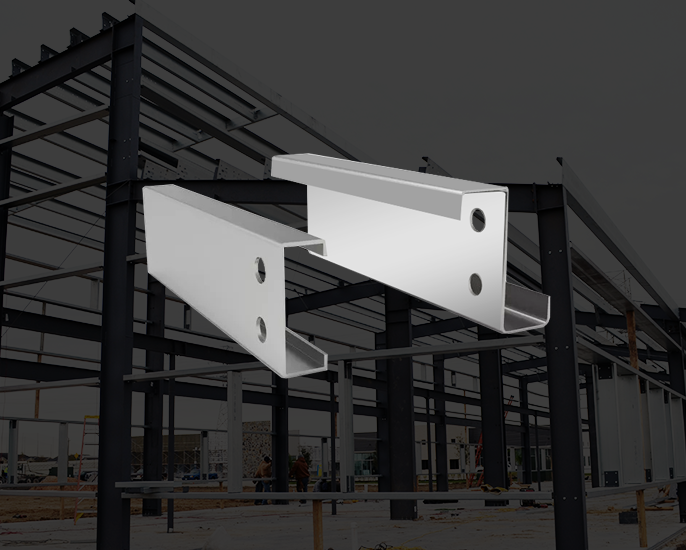

C & Z PURLINS

BM C&Z Purlins are most inevitable part of modern steel buildings used as framing and support members in roofs and wall. They are ready to use Purlins & Girts roll formed from high strength galvanized steel or HR steel sourced from primary steel producers, pre punched and cut to length as per required dimensions or design. Thus providing an efficient, lightweight and economical product to Engineers, Fabricators & PEB manufacturers. Above all these, Bansal Metallics stringent quality standards and latest manufacturing facility enhances product quality and user satisfaction beyond expectations.

Profile Specifications:


High Strength to Weight Ratio –
BM purlins are cold formed from high strength steel upto 350mpa which makes them 40% more stronger than typical hot rolled steel.

Fastest Installation time-
Customized length and pre punched sections does not require further welding or machining thereby saving erection time . Galvanized purlins also saves painting time.

Economical & Low cost-
Higher strength and lighter weight, customized sizes and quick installation saves material and fabrication cost.

Greater Spanning Capability –
Due to higher strength and customization ,purlins of even 2.0mm thickness can be used for span upto 10 metres.

Long Durability-
Corrosion resistant galvanized Purlins increases life of product and building by 3 times

BM PURLIN SIZES & SECTIONS

PURLIN TYPE WEB (L) FLANGE (X) FLANGE (X) LIP (Y)
"Z" PURLIN100404510
150505515
200657020
250657020
300909525
"C" PURLIN100404010
150505015
200656520
250656520
300909025

"Z" PURLIN

"C" PURLIN

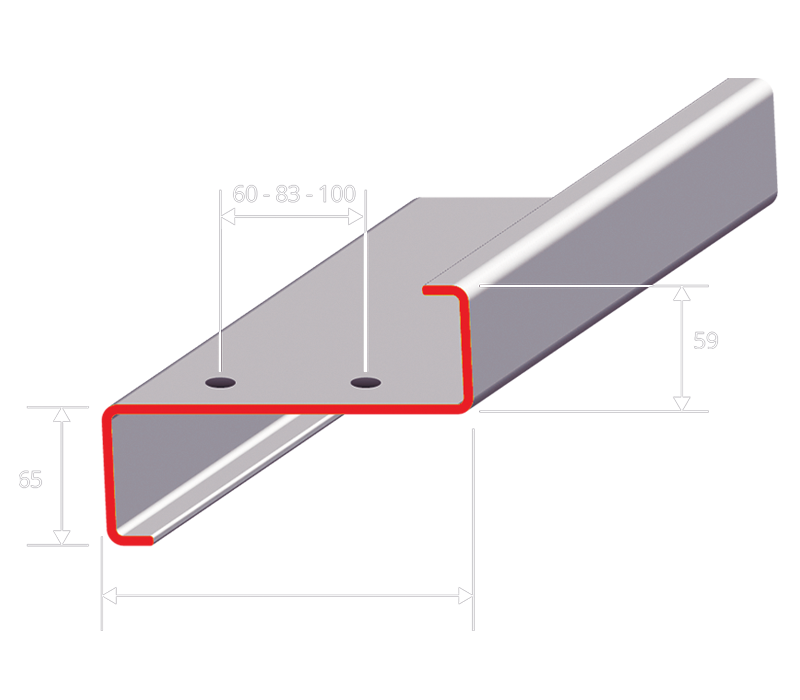

STANDARD Z200 PURLIN DRAWING AND SECTION DETAILS :

PUNCH SIZE : 16x32 mm
PUNCH GAP : 60mm 100mm
THICKNESS : 1.5mm 3.0mm

THICKNESS SECTION WEIGHT/MTR
1.5mm4.40kg
1.8mm5.10kg
2.0mm5.65kg
2.5mm7.10kg
3.0mm8.60kg
NOTE : Tolerance - +/- 5%
